EPOMAKER Hack59 QMK/VIA HHKB-like Layout Gasket-mounted Hot-Swap Wired/2.4GHz/Bluetooth 5.0 Wireless Mechanical Gaming Keyboard

$59.14
No tax
EPOMAKER Hack59 QMK/VIA HHKB-like Layout Gasket-mounted Hot-Swap Wired/2.4GHz/Bluetooth 5.0 Wireless Mechanical Gaming Keyboard



100% Secure Payment



Free Worldwide Shipping



Worldwide After-Sales Service

EPOMAKER Hack59 QMK/VIA HHKB-like Layout Gasket-mounted Hot-Swap Wired/2.4GHz/Bluetooth 5.0 Wireless Mechanical Gaming Keyboard


The Hack 59 features a five-layer sound dampening system, enhancing acoustics and minimizing typing noise for improved keystroke clarity.


-60% Special Layout with 59 keys

-QMK/VIA Support for for keyboard customization

-Gasket Structure with 5 Layers of Sound-Dampening Materials

-Per-key south-facing RGB LEDs

-3000mAh Battery for Tri-Mode Connectivity

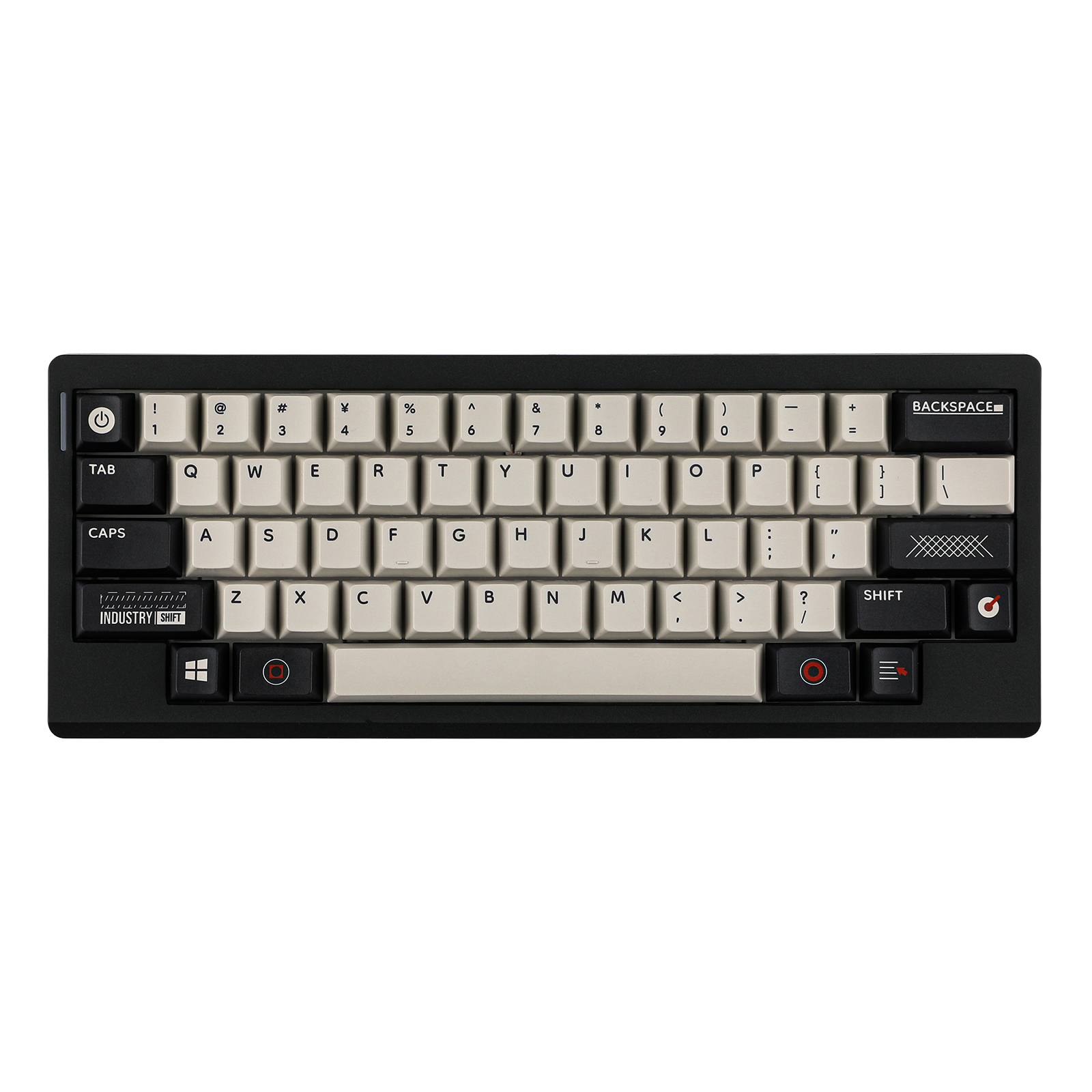

HHKB-like Layout with 59 Keys

The Epomaker Hack 59 features a compact 59-key layout that emphasizes a minimalistic approach and ergonomic design. This layout is designed to keep keys within easy reach, enhancing typing efficiency and comfort. The keyboard's design maximizes desk space while ensuring essential functionality remains intact.


Triple Modes Connectivity

Equipped with versatile connectivity options, the Epomaker Hack 59 supports Type-C wired, Bluetooth 5.0, and 2.4GHz wireless connections. This allows users to seamlessly switch between multiple devices and platforms, ensuring reliable linkage whether at home, in the office, or on the go.


5 Layer Sound Dampening Material

The Hack 59 incorporates a five-layer sound dampening system designed to enhance acoustics and reduce typing noise. This system includes Poron Sandwich Foam, IXPE Switch Pad, a Sound Enhancement Pad, Poron Switch Socket Pad, and a Bottom Silicone Pad. Each component works in harmony to dampen excess sound and refine the auditory output of keystrokes.

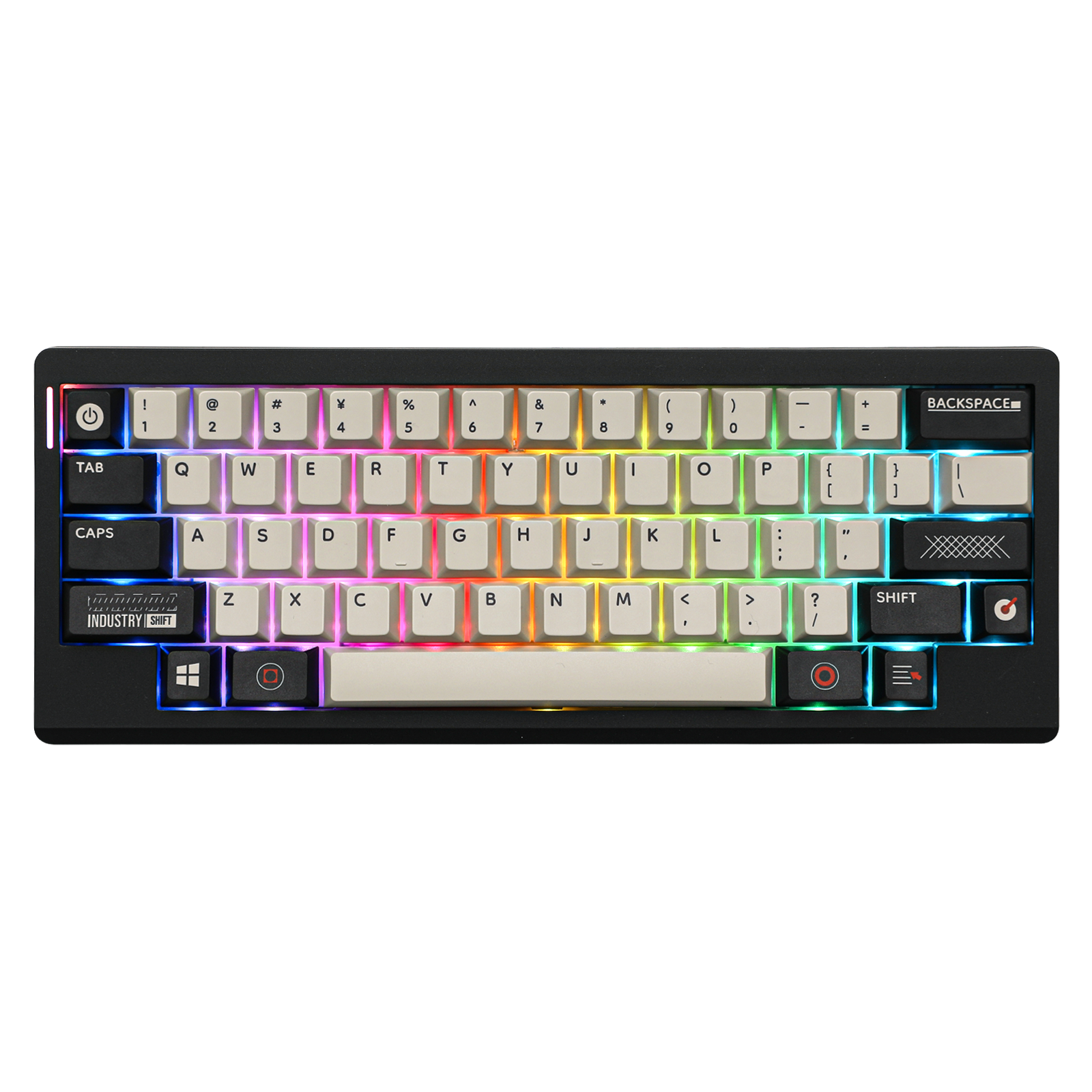

Gasket Structure & Full-key Hotswappable with South-facing RGB Backlight

This keyboard adopts a gasket-mounted design that isolates the typing plate from the rest of the chassis to reduce vibration and create a more pleasant typing feel. Additionally, it features full-key hotswappability with south-facing RGB LEDs, which ensures even lighting across all keycaps without interference from switch shadows.


QMK/VIA Programmable

The Epomaker Hack 59 supports QMK/VIA programmability, offering extensive customization for key mappings and macros. Users can fine-tune their keyboard's functionality to suit specific tasks, enhancing both productivity and user experience. The programmable nature of the Hack 59 makes it suitable for users who require a highly personalized setup.


Specs:

Brand: EPOMAKER

Model: Hack59

Layout: 60% ANSI US Layout

Number of Keys: 59 keys

Battery: 3000mAh

Connectivity: Cable Wired, 2.4GHz, Bluetooth 5.0

Compatibility: Mac/WIN/Android

Package Dimensions: 322*114*45MM

Keyboard Weight: Around 0.7kg

Front Height: 28.2MM

Back Height: 39.4MM

Typing Angle: 6 degree

Case Material: ABS Plastic

Plate Material: PC Plastic

Flex-Cut: No

Stabilizers: Plate-Mount Stabilizer. (Not compatible with Screw-in Stabilizer)

Mounting Structure: Gasket-Mount

PCB Thickness: 1.6mm

PCB Material: FR4

Sound Dampening: 5 layers. (Poron Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, Poron Switch Socket Pad, Bottom Silicone Pad)

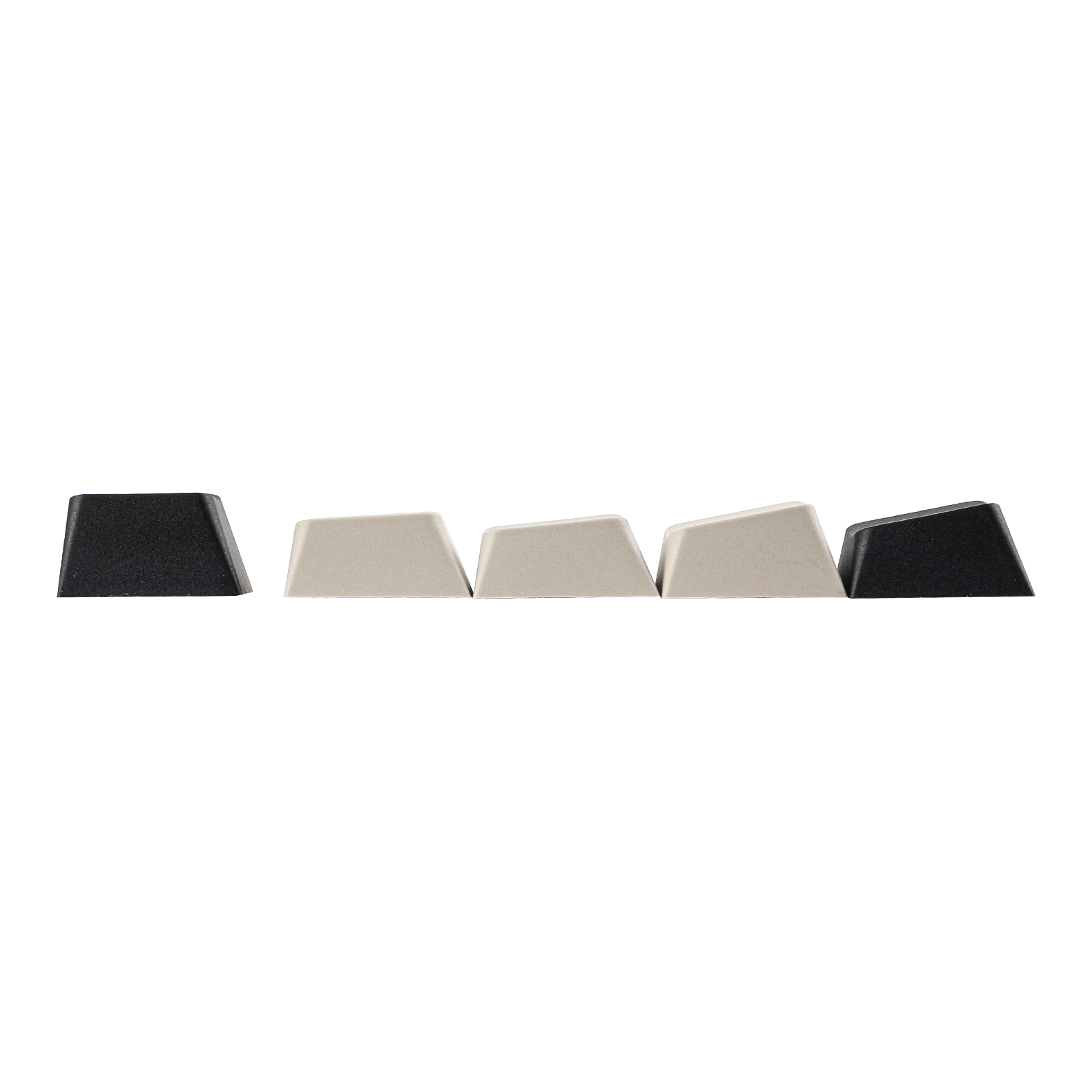

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Plastic

Keycaps Manufacturing Technique: Dye-sublimation

Hot swappable: Yes, with 3/5-pin mechanical switches

RGB: South-facing, per-key RGB

Polling Rate: 1000Hz (USB, 2.4Ghz), 125Hz (Bluetooth 5.0)

Latency: 3ms (USB), 5ms (2.4Ghz wireless), 15ms (Bluetooth 5.0)


Specifications for EPOMAKER Flamingo Linear Switch:

Switch Name: EPOMAKER Flamingo Linear Switch

Switch Type: Linear

Pins: 5 Pins

Factory Lubed: Yes

Material: POM stem, PC housing, dual spring

Initial Force: 35gf min

Actuation Force: 47±5gf

Bottom-out Force: 60gf max

Actuation Travel: 1.50±2.00mm

Lifespan: 100 Million of Stokes


Specifications for EPOMAKER Wisteria Linear Switch V1:

Switch Name: Epomaker Wisteria V1 Switch

Switch Type: 5-pin Linear, Factory Lubed

Trigger Force: 45±3 gf

Bottom-out Force: 62±5 gf

Pre-Travel: 2.0±0.3mm

Total Travel: 3.6±0.3mm

Material: POM & PTFE (Stem), PC (Top Case), PA66 (Bottom Case)

Lifespan: 5,000,000

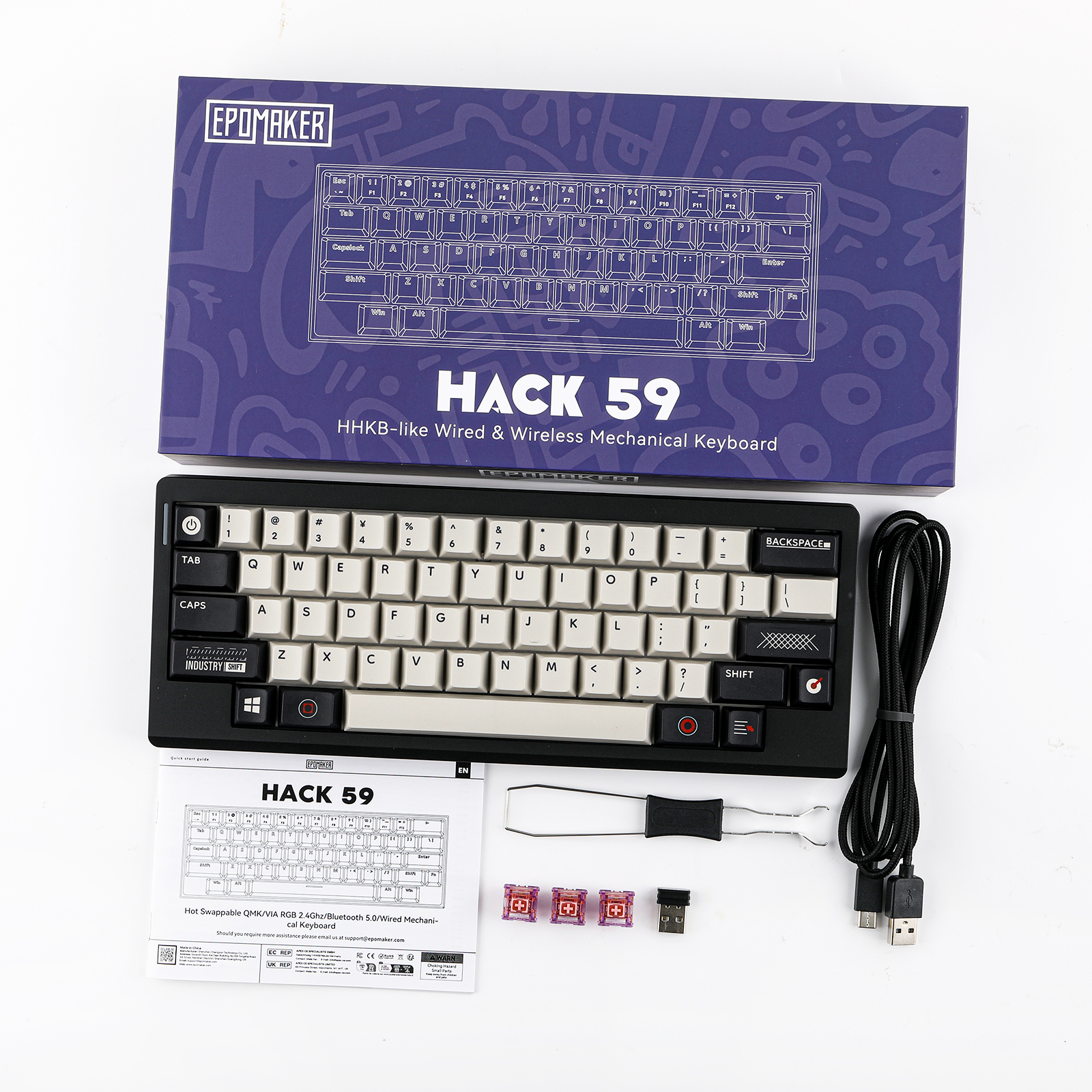

Inside the Box:

-Keyboard

-USB Cable

-User Manual

-Keycap Puller
