Ajazz AK820 Pro 75% Gasket-mounted Wired/Bluetooth 5.1/2.4G Wireless Mechanical Keyboard with TFT Screen for Win/Mac

$55.24
No tax
Ajazz AK820 Pro 75% Gasket-mounted Wired/Bluetooth 5.1/2.4G Wireless Mechanical Keyboard with TFT Screen for Win/Mac



100% Secure Payment



Free Worldwide Shipping



Worldwide After-Sales Service

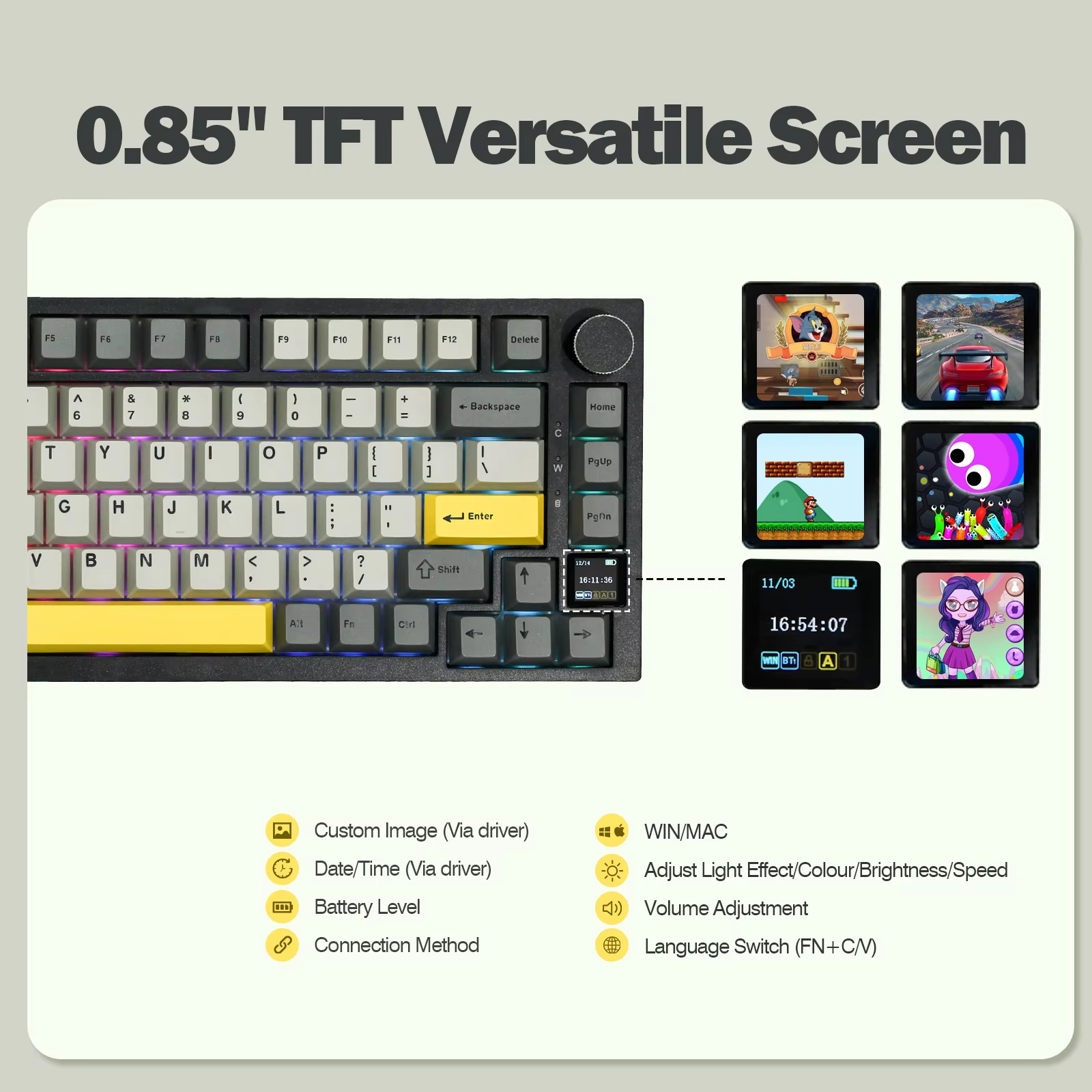

TFT Screen: The Interactive Interface

This 75% mechanical keyboard comes equipped with a TFT Screen, serving as your interactive interface for real-time updates and customization. The high-definition display allows for customizable visuals, battery status, date & time display, connectivity & OS display, and backlight effects. With this TFT Screen feature breakdown, it’s easily to understand the full range of its capabilities and why the Ajazz AK820 Pro stands out from other keyboards on the market.

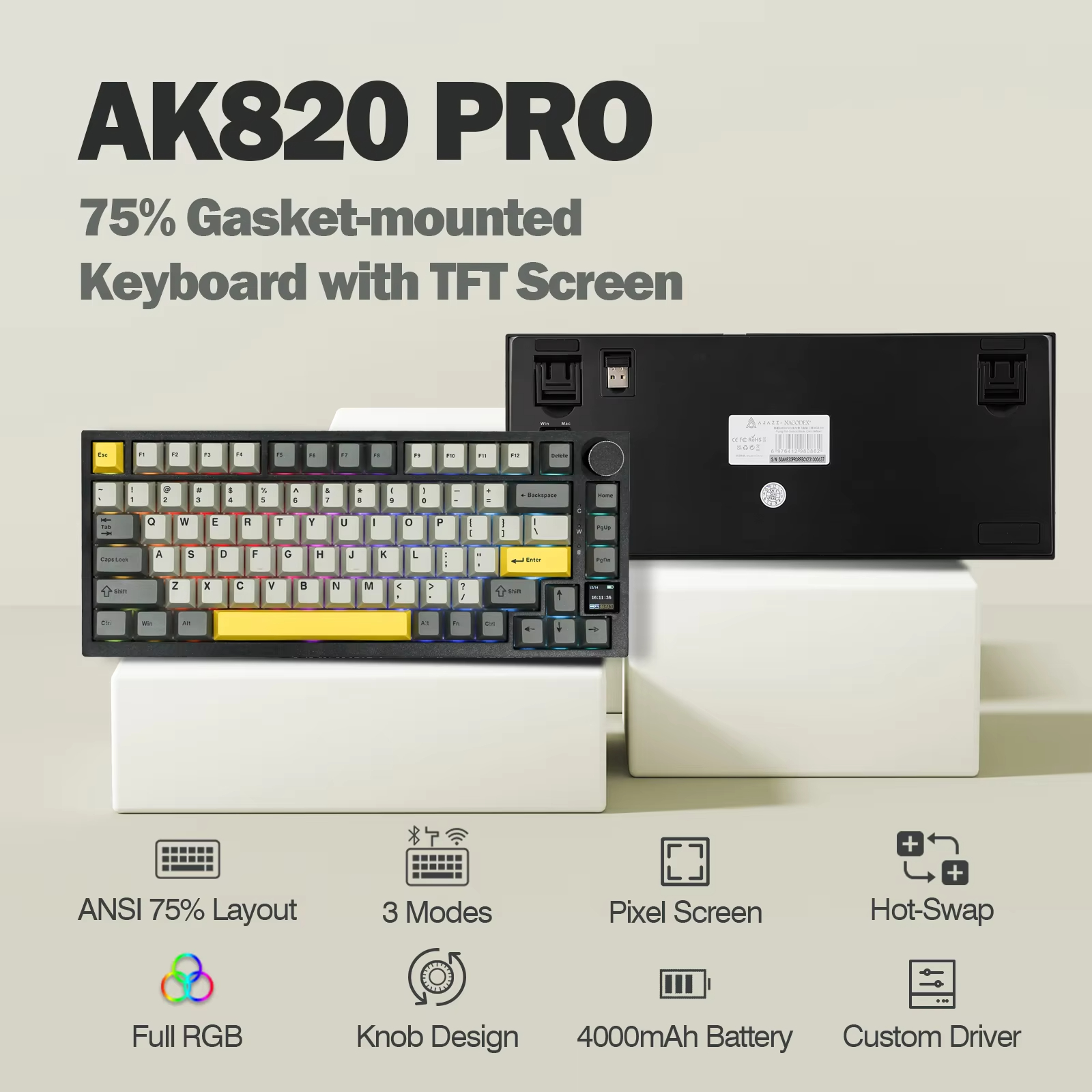

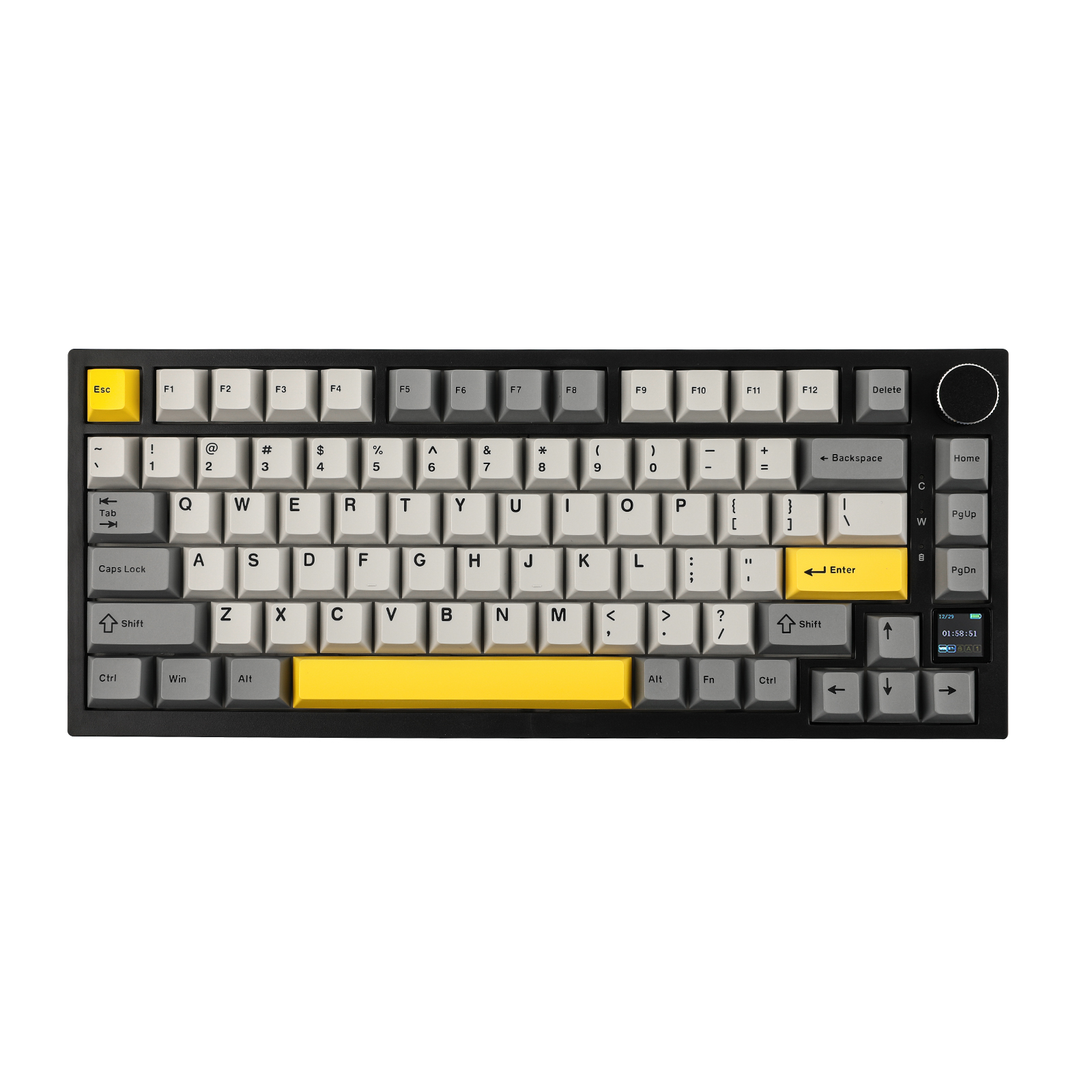

A Popular 75% Compact Design

Designed for both enthusiasts and professionals alike, the Ajazz AK820 Pro offers a combination of innovation and craftsmanship that's hard to beat. This 75% compact mechanical keyboard maximize your desk space and enjoy a sleek look with this 75% layout. It's also perfectly portable, allowing for seamless typing experiences, delivering a superior typing experience without compromising on features or functionality, wherever you are.

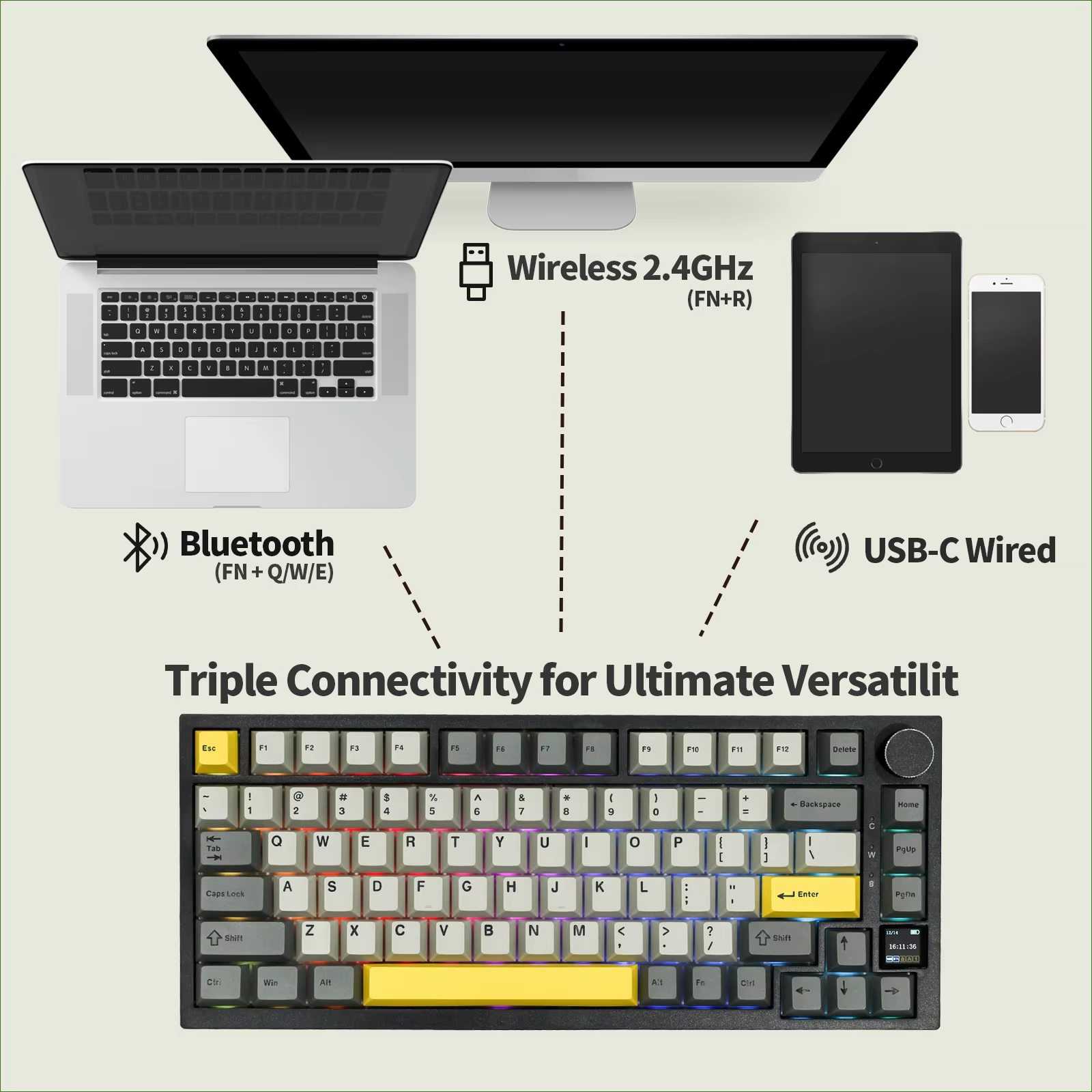

Wireless & Wired Connectivity

The Ajazz AK820 Prosupports connection via Bluetooth or 2.4GHz for wireless connectivity, or with the included Type-C USB cable. With Bluetooth 5.1, the keyboard responses faster and save more power than the former Bluetooth versions. The keyboard is also easily switched among the three modes for efficient multitasking and speedy performance. Included 4000mAh battery ensures a long and steady use, without worries of short out.




Gasket-mounted & Flex-cut PC Plate and PCB

Experience a typing feel like never before with our gasket-mounted design coupled with a Flex-cut PC plate and PCB. The gasket mounting method isolates the plate and PCB from the case, significantly reducing vibration and noise. In the meanwhile, the Flex-cut design in both the PC plate and PCB allows for a slightly flexy, yet stable typing experience. Every keypress is both cushioned and precise. This innovative construction results in optimal force distribution, a softer bottom-out, and a truly personalized keystroke.

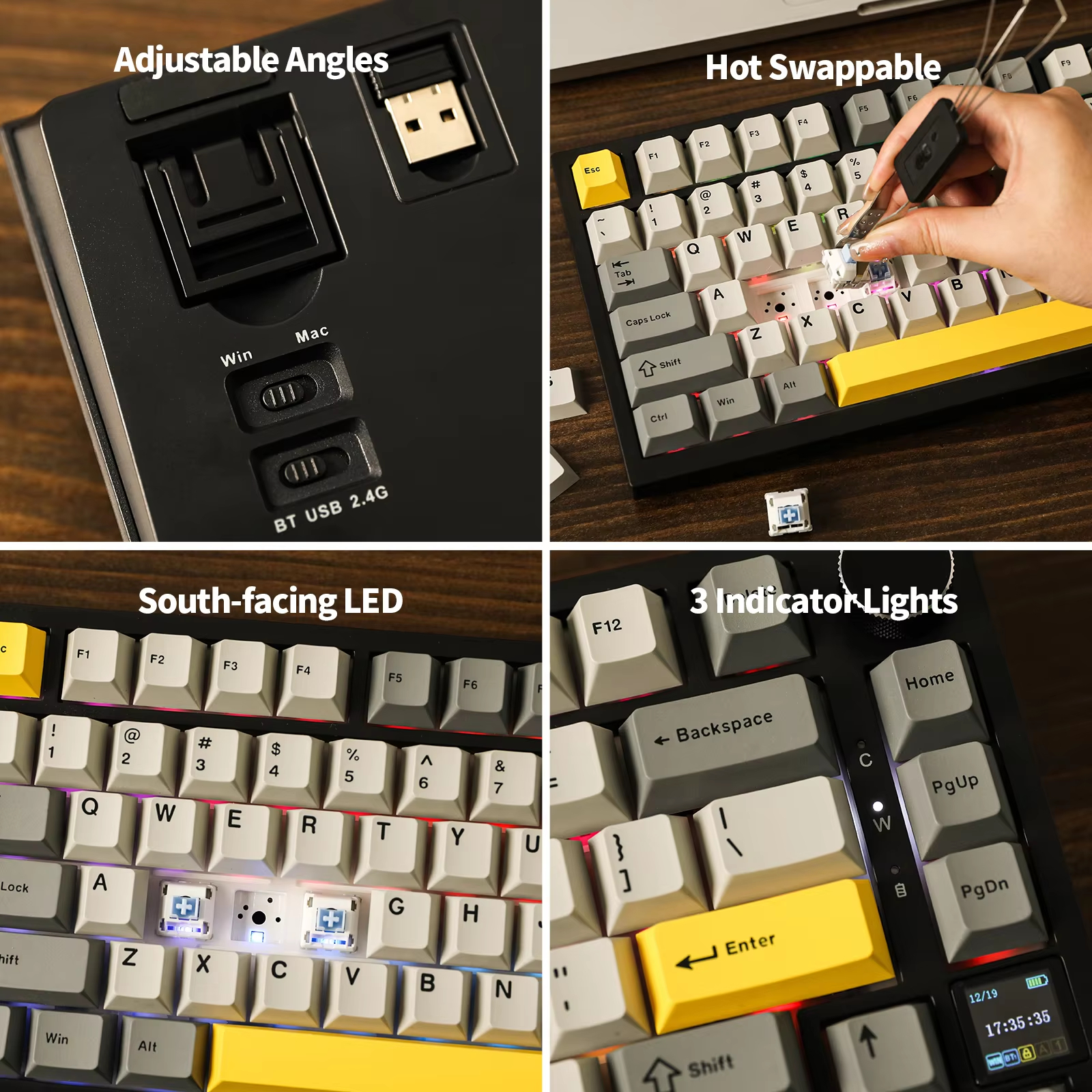

South-facing LEDs with 1.6M RGB & Mac/Win Compatibility

Illuminate your setup with the Ajazz AK820 Pro's vibrant LED backlighting, featuring South-facing LEDs that offer superior shine-through capabilities. With a staggering 1.6 million color combinations, you can customize your RGB lighting profiles to suit your mood, occasion, or overall aesthetic. What's more, the keyboard is fully compatible with both Mac and Windows operating systems, ensuring that you can enjoy the full range of its features irrespective of your computing preferences. With the customizable TFT screen, you can easily switch between Win and Mac modes, enhancing your overall usability and productivity.




Specifications for Ajazz Gift Switch:

Type: 5-pin Linear, Factory Lubed

Total Travel: 3.6 ± 0.2mm

Pre Travel: 2.0 ± 0.4mm

Initial Force: 45 ± 8g

Bottom Force: 60 ± 8g


Specifications for Ajazz Flying Fish Switch:

Type: 5-pin Linear, Factory Lubed

Total Travel: 3.5 ± 0.4mm

Pre Travel: 2.0 ± 0.4mm

Initial Force: 42 ± 10g

Bottom Force: 48 ± 10g


Specifications for Ajazz Dreamy Switch:

Switch Type: 5-pin Linear, Factory Lubed

Initial Force: 30 gf

Trigger Force: 40±10 gf

Bottom-out Force: 50 gf

Pre-Travel: 2.0±0.6mm

Total Travel: 3.3±0.2mm


Specifications:

Brand: EPOMAKER X AJAZZ

Model: AK820 PRO

Layout: 75% ANSI US Layout

Key Amounts: 81 Keys + 1 Rotary Knob(OEM)/Metal Knob(Cherry) + TFT Screen(OEM)/Glass Screen(Cherry)

Screen Size: 0.85 inch

Battery: 4000mAh(Cherry)

Battery Life: 20Hrs with backlight and screen on, 100Hrs with screen on but backlight off.(Cherry)

Keycaps Material: PBT Plastic

Keycaps Profile: OEM Profile/Cherry Profile

Hotswappable: Yes

Connectivity: Type-C Wired, 2.4GHz & Bluetooth 5.1(OEM)/Type-C Cable, 2.4GHz & Bluetooth 5.0(Cherry)

Mounting Structure: Gasket-Mount

Stabilizer type: Plate-Mounted

Case Material: ABS Plastic

Plate Material: Flex-cut PC

PCB Thickness: 1.2mm(OEM)

Front Height: 20.4 mm(Cherry)

NKRO: Support

Backlight: 1.6m RGB

Battery Capacity: 4000mAh

Compatibility: Window/MacOS(OEM)--Mac/WIN/Android(Cherry)

Dimension: 327*136*40mm(OEM)/324*136*40mm(Cherry)

Weight: 0.8kg

Keycaps Manufacturing Technique: Doublt-Shot(Cherry)

Sound Dampening: 5 layers: Poron Sandwich Pad, IXPE Switch Pad, PET Sound-Enhancement pad, Bottom Foam and Bottom Silicone.


What’s in the Package?

1* AK820 PRO Gaming Keyboard

3* Extra Keycaps

1* 2-in-1 Switch-and-Keycap Puller

1* USB A-to-C Cable

1* Wireless 2.4Ghz Receiver (Stored on Keyboard)

1* Manual


Sda2c1c2cd58b4fbf9b6382be254a37e8B.jpgSb2561218b7544b05959f690277c93bc4B.jpgS25da2984cfe142d2883e2f4c4428bbdce.jpgS9a53ad161a814c9f899c1c1d8769b28a7.jpgS0d88e8abe95e47bab1988f403a29a2caS.jpgS9de533ac1d2b4d43a6af3135dbb1e09e9.jpgS18d30dd121a8475790fcdc14eba77291z.jpgSf557c5e796684d6f86583672b9019e0cZ.jpgSe50c97865f3c4f5b92ae617af6f731742.jpgS58db3e1c76b642178badb286226761a8Z.jpgS28321f76737745bc9b426b60352de28ad.jpgS3915fc9e6c074eb7b45c58a24b06a112x.jpgS4631c8aef2aa45c3a3b76ba69ae4739a6.jpgS6d00a404605b4ee181eaa96ead1522d4S.jpgScd6595b8b3264a4984ddc9e773377263w.png

Sfdd101cc9ddb411eb2c5bdd625f632a3F.pngS14c02929b6bb44aaa315363bf948cde2f.pngSf1981e2ecbe04b23b6d58e999bf82f6bh.pngSee785fbee7914c64b0061b7bb262e01fD.pngSafba2cb14c7749ed89228306717418b3Z.pngS6500c7406a7e410584dd4d9b1756b1fbW.pngSefff74a83cff42e2b82805b0414364b58.png

  • Brand Name
    Ajazz
  • Type
    2.4Ghz Wireless
  • High-concerned chemical
    None
  • Origin
    Mainland China
  • Operation Style
    Mechanical
  • Language
    English
  • Application
    Desktop
  • Battery Included
    Yes
  • Keyboard Standard
    82 Key
  • Style
    Standard
  • Package
    Yes
  • Interface Type
    USB
  • Wrist Support
    No
  • Switches Hot swap
    Yes
  • Full Size keyboard
    No
  • Ajazz Model
    AK820 PRO

Product Packaging

Package width
14
Package height
4
Package length
33
Gross weight
1.200
Package type
Product unit
100000015
